FGT - Gooseneck Deckover Tilt 40K (NEW VERSION FEBRUARY 2026)
Gooseneck 102" x 32' Swing-Top Trailer
Galvanized steel structure
1. Structure & Chassis
- Gooseneck in Engineered Beam
- Adjustable 3" ball gooseneck tube
- 12" galvanized H-beam frame
- Anti-twist tube
- Chain support
- Support for sliding winch bar
- Step stool
- 32" rotating platform
- Knife tip (smooth transition to the ground)
- 14° slope
- Rail under the platform for sliding winch
- Equipped with rub rail / 1/4 stake pockets
- Lockable lower front trunk
- Lockable upper front trunk
2. Axles, Wheels & Brakes
- Two 16,000 lb axles
- Oil/grease bearing
- Double wheels
- Leaf spring suspension
- 215/75R17.5 (16-ply) tires
- 17.5" galvanized wheels
- Spare wheel included
- Spare wheel support
- Electric brakes
- Emergency braking module
3. Winch & Lifting System
- Integrated winch plate
- 17,500 lb electric winch with wireless remote + Group 27 battery
- Two 12,000 lb hydraulic cylinders
- Hydraulic lifting unit with battery Group 27
- Wireless remote control for the hydraulic unit (UP/DN plate only)
- Tilt platform descent speed adjustment valve
4. Electricity & Electronic Components
- LED lights
- Weatherproof spinning
- 7-strand round plug, flexible down to -40°C
- Orion DC/DC Bluetooth charger (mobile app for battery status)
- Anderson connector for battery charging
5. Hardware & Finishing
- Stainless steel hardware
- Aluminum side trunk locking mechanism
- Prickly pear wood flooring
6. Capacity and Weight
- GVWR: 32,000 lb
- Including 25% load distribution: 40,000 lb
- Unladen weight: 11.990 lb
- Load capacity: 28,000 lb
Options available to you
- Leblond Jack (Rear jacks for loading dock / Dock 10K lbs max)
- Drawer with wooden block (Dunnage Boxes)
- Tray on top of the Swan's Neck
- Charging light
- Hydraulic Braking
- 25K hydraulic cylinders
- Removable D-ring pocket
- Electric Winch 12,000 lbs/17,000 lbs
- Additional storage compartment under the chassis
- Spare wheel
- Fifthwheel tube
- Gooseneck tube for 2"5/16 ball
- 3/8 transport chains
- Chain tensioner
- Others on request
Order yours now!
The new version, to be released in February 2026, includes:
- 3" square ball gooseneck tube (optional 2" 5/16" gooseneck tube but reduced GNPV)
- 2x 1/2" D-rings behind the gooseneck tube as additional chain supports (in addition to the supports in the neck)
- Chain storage bin near the more spacious cylinders
- Relocation of the hydraulic hoses for the cylinders (less prone to snagging)
- Removal of the hole for the winch in the upper locker
- Added a lid and lock to the top compartment
- Added 3 cable protection plates in the 2 gooseneck compartments and in the gooseneck neck
- Galvanized trunk lid and protective plate.
- Removal of the gas cylinders for opening the trunks (replaced by retaining chains)
- Addition of an Anderson plug (winch plug) and wiring for charging standard batteries
- Adding a battery near the front winch (with the electric winch option)
- Added an Orion-Tr Smart DC/DC charger with Bluetooth support to view battery status. (Enables more work cycles and reduces charging time)
- Faster hydraulic unit and return control valve to lower the platform faster without assistance from the unit.
- Replacement of the aluminum, single-door, front-opening safe with a galvanized steel, two-door, side-opening safe
- The side trunk supports will be galvanized
- Adding a steel wing above the rear axle wheels
- 16,000 lb axles
- Improved tray and Leblond Jack locking
- Rear light with integrated reversing light as standard
- The loading lighting option includes 2 LED work lights placed on each side of the winch or at the front end of the platform (the retractable lights and the LED bar under the box will no longer be offered in this option)
- The tip of the plateau has been revised
- Stainless steel or aluminum hardware
- Stainless steel bolts (except axles and floor)

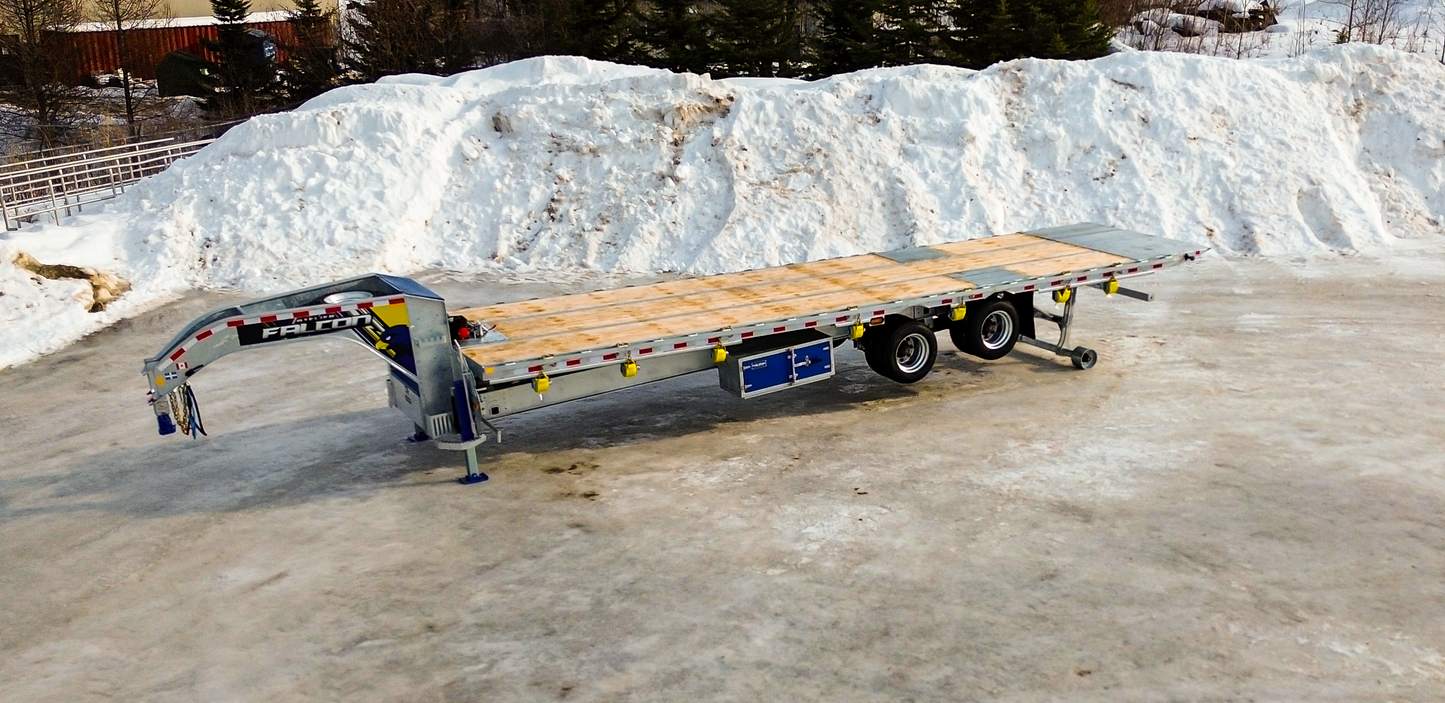

*** Photo for illustrative purposes only; the new version will be released soon (in 3 weeks) ***
